Kapture KPT-UNICAM - Setting up

Modified on: Wed, 9 Jul, 2025 at 2:01 PM

Select a flat, central location near the number plate lamp at the rear of your vehicle to mount the camera.
Attach tape to the bracket of the rear camera to hold the camera in position while installing and drill two small holes, one for the first screw and the second to run the rear camera cable through.
Use a screwdriver to fasten the first screw but leave it loose enough to adjust the rear camera.
Insert the rear camera cable through the intended drilled hole and check the installation position.
Mark a position suitable for the second screw and drill a small hole.
Fasten the second screw and tighten both screws securely.
To enable the monitors to display the reverse when the car goes into reverse, the reversing light wire must be connected to the UNICAM cable.

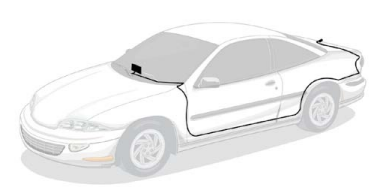

Connect the Rear Camera cable from the Smart Monitor to the Rear Camera as shown below.
